Calling applyLayout(preservingOrigin: true) multiplies margin #1023

New Issue

2020-07-26T23:53:58-07:00

krzysztofpawski commented

2020-07-26 23:53:58 -07:00

(Migrated from github.com)

Report

[ x] I have searched existing issues and this is not a duplicate

Issues and Steps to Reproduce

Use YogaKit as a Pod for iOS Project

  - YogaKit (1.18.1):
    - Yoga (~> 1.14)

class ViewController: UIViewController {

    private var viewTest: UIView?

    override func viewDidLoad() {
        super.viewDidLoad()

        let contentView = UIView()
        contentView.backgroundColor = .lightGray
        contentView.configureLayout { (layout) in
          layout.isEnabled = true
          layout.flexDirection = .row
          layout.width = 320
          layout.height = 80
          layout.marginTop = 40
          layout.marginLeft = 10
        }
        view.addSubview(contentView)

        let child1 = UIView()
        child1.backgroundColor = .red
        child1.configureLayout{ (layout)  in
          layout.isEnabled = true
          layout.width = 80
        }
        contentView.addSubview(child1)
        contentView.yoga.applyLayout(preservingOrigin: true)
        viewTest = contentView
        perform(#selector(layoutSubview), with: nil, afterDelay: 1.0)
    }

    @objc func layoutSubview() {
        viewTest?.yoga.applyLayout(preservingOrigin: true)
        perform(#selector(layoutSubview), with: nil, afterDelay: 1.0)
    }
}

Expected Behavior

Layout stays the same. contentView always has a marginTop=40 and marginLeft=10.

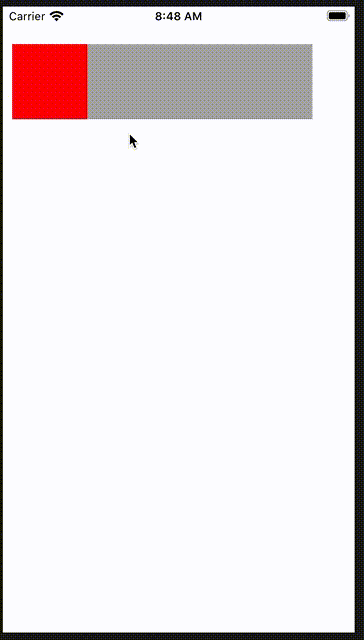

Actual Behavior

Each time yoga.applyLayout(preservingOrigin: true) is called margins are accumulated.

# Report - [ x] I have searched [existing issues](https://github.com/facebook/yoga/issues) and this is not a duplicate # Issues and Steps to Reproduce Use YogaKit as a Pod for iOS Project ``` - YogaKit (1.18.1): - Yoga (~> 1.14) ``` ``` class ViewController: UIViewController { private var viewTest: UIView? override func viewDidLoad() { super.viewDidLoad() let contentView = UIView() contentView.backgroundColor = .lightGray contentView.configureLayout { (layout) in layout.isEnabled = true layout.flexDirection = .row layout.width = 320 layout.height = 80 layout.marginTop = 40 layout.marginLeft = 10 } view.addSubview(contentView) let child1 = UIView() child1.backgroundColor = .red child1.configureLayout{ (layout) in layout.isEnabled = true layout.width = 80 } contentView.addSubview(child1) contentView.yoga.applyLayout(preservingOrigin: true) viewTest = contentView perform(#selector(layoutSubview), with: nil, afterDelay: 1.0) } @objc func layoutSubview() { viewTest?.yoga.applyLayout(preservingOrigin: true) perform(#selector(layoutSubview), with: nil, afterDelay: 1.0) } } ``` # Expected Behavior Layout stays the same. `contentView` always has a `marginTop=40` and `marginLeft=10`. # Actual Behavior Each time `yoga.applyLayout(preservingOrigin: true)` is called margins are accumulated. ![yoga_margin](https://user-images.githubusercontent.com/6144246/88512116-4bd68880-cfe6-11ea-83a2-626af42586c5.gif)

krzysztofpawski commented

2020-07-27 01:27:25 -07:00

(Migrated from github.com)

No, it looks that I still don't understand how it works...

cntrump commented

2020-08-12 22:58:19 -07:00

(Migrated from github.com)

YGLayout.m

const CGPoint origin = preserveOrigin ? view.frame.origin : CGPointZero;

YGLayout.m ```objc const CGPoint origin = preserveOrigin ? view.frame.origin : CGPointZero; ```

cntrump commented

2020-08-12 23:10:51 -07:00

(Migrated from github.com)

You should'nt set margin in Root view.

You should'nt set margin in `Root` view.

cntrump commented

2020-08-12 23:26:47 -07:00

(Migrated from github.com)

I fixed in my PR: https://github.com/facebook/yoga/pull/1026

NickGerleman commented

2023-06-13 08:09:26 -07:00

(Migrated from github.com)

We are deprecating YogaKit as part of the Yoga 2.0 release. We are still going to release a new revision based on the current state of the repo, but won't be accepting new contributions, since we are going to be removing it from the repo after.
