[React-Native]: Combining flexWrap, alignItems & wrap leads to unwanted alignment #1067

New Issue
Open
opened 2021-03-04 08:03:28 -08:00 by Titozzz · 4 comments
Titozzz commented 2021-03-04 08:03:28 -08:00 (Migrated from github.com)
Copy Link

Report

Issues and Steps to Reproduce

When margin is added to an item, inside a wrapping container, it should be ignored but it is taken into account during alignItems

Expected Behavior

In the following example the 2 colored square should be in the same spot

Actual Behavior

On the web (using react-native-web it works correctly)
On native, the second square is in the wrong spot cause it is centered inside height + margin instead of just height
i've added opacity to see what's happening

Link to Code

https://snack.expo.dev/@titozzz/yoga-issue-1067

Web:
Screenshot 2021-03-04 at 16 57 17
Native:
Screenshot_20210304-165704

# Report - [X] I have searched [existing issues](https://github.com/facebook/yoga/issues) and this is not a duplicate # Issues and Steps to Reproduce When **margin** is added to an item, inside a **wrapping** container, it should be ignored but it is taken into account during **alignItems** # Expected Behavior In the following example the 2 colored square should be in the same spot # Actual Behavior On the web (using react-native-web it works correctly) On native, the second square is in the wrong spot cause it is centered inside height + margin instead of just height i've added opacity to see what's happening # Link to Code https://snack.expo.dev/@titozzz/yoga-issue-1067 Web: <img width="245" alt="Screenshot 2021-03-04 at 16 57 17" src="https://user-images.githubusercontent.com/6181446/109991935-12e45c00-7d0b-11eb-9cf5-835ca372395c.png"> Native: ![Screenshot_20210304-165704](https://user-images.githubusercontent.com/6181446/109992299-6bb3f480-7d0b-11eb-9d9b-84608e1fe388.jpg)
👍 3
guiccbr commented 2021-08-27 20:47:15 -07:00 (Migrated from github.com)
Copy Link

Taking the chance to report something else that I noticed when using flexWrap, since it could have the same root cause as the original issue:

I have a horizontal container that uses flexWrap with two vertical child containers that will have two rectangles each. The rectangles have different heights. If I use space-between in the vertical child containers with flexWrap in the horizontal container, there will be a very weird overflow of the children.

  • Without flexWrap (expected behavior, works correctly)
    <View style={{ backgroundColor: 'purple', flexDirection: 'row' }}>
      <View style={{ borderWidth: 1, borderColor: 'white', justifyContent: 'space-between' }}>
        <View style={{ backgroundColor: 'red', height: 100, width: 100 }} />
        <View style={{ backgroundColor: 'green', height: 100, width: 100 }} />
      </View>
      <View style={{ borderWidth: 1, borderColor: 'white', justifyContent: 'space-between' }}>
        <View style={{ backgroundColor: 'blue', height: 150, width: 100 }} />
        <View style={{ backgroundColor: 'yellow', height: 150, width: 100 }} />
      </View>
    </View>

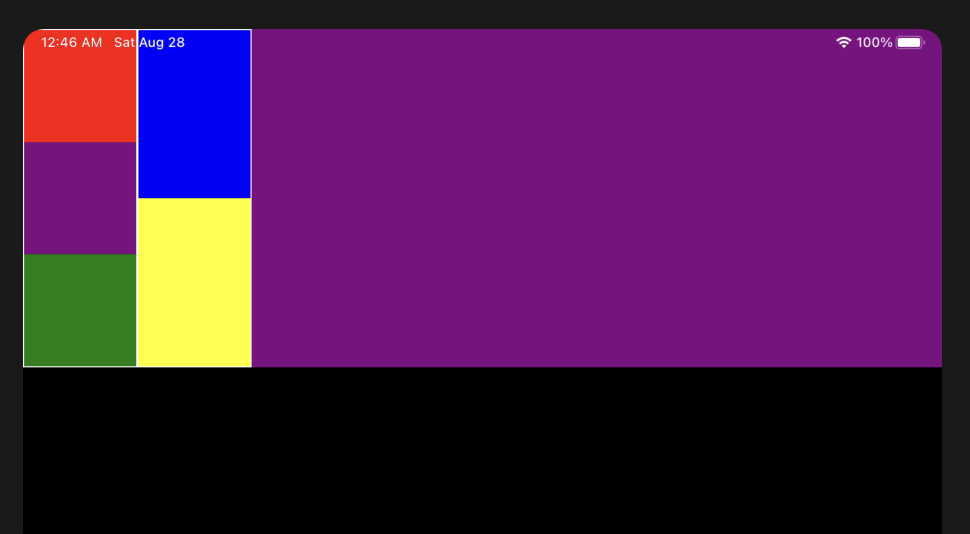

Captura de Tela 2021-08-28 às 00 46 34
  • With flexWrap (unexpected behavior)
    <View style={{ backgroundColor: 'purple', flexDirection: 'row', flexWrap: 'wrap' }}>
      <View style={{ borderWidth: 1, borderColor: 'white', justifyContent: 'space-between' }}>
        <View style={{ backgroundColor: 'red', height: 100, width: 100 }} />
        <View style={{ backgroundColor: 'green', height: 100, width: 100 }} />
      </View>
      <View style={{ borderWidth: 1, borderColor: 'white', justifyContent: 'space-between' }}>
        <View style={{ backgroundColor: 'blue', height: 150, width: 100 }} />
        <View style={{ backgroundColor: 'yellow', height: 150, width: 100 }} />
      </View>
    </View>

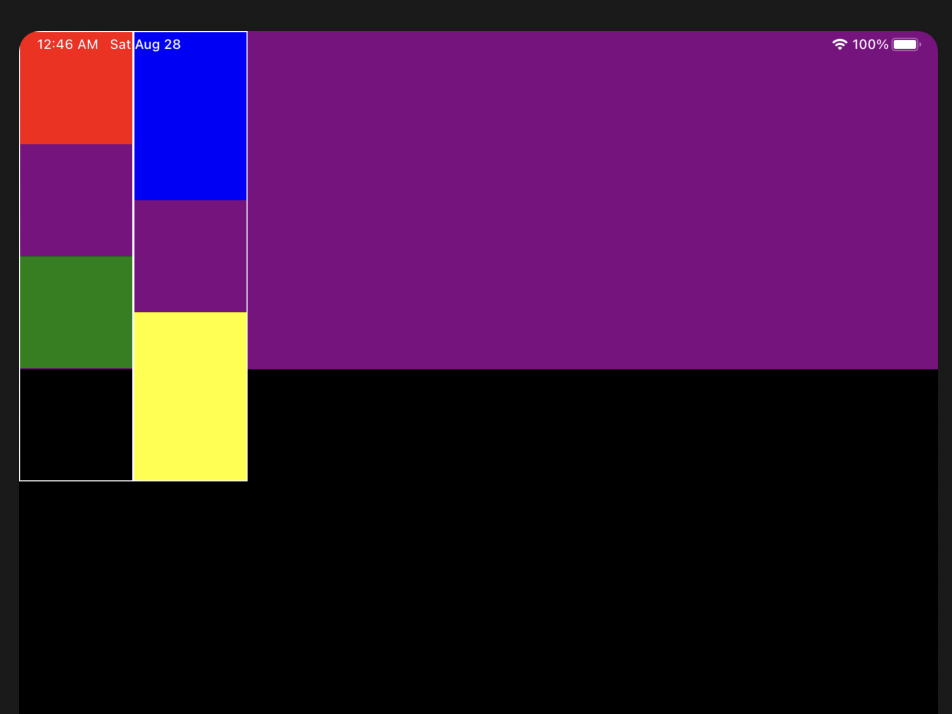

Captura de Tela 2021-08-28 às 00 46 00

Is that expected? Looks like a bug too right?

Taking the chance to report something else that I noticed when using flexWrap, since it could have the same root cause as the original issue: I have a horizontal container that uses flexWrap with two vertical child containers that will have two rectangles each. The rectangles have different heights. If I use space-between in the vertical child containers with flexWrap in the horizontal container, there will be a very weird overflow of the children. * Without `flexWrap` (expected behavior, works correctly) ``` <View style={{ backgroundColor: 'purple', flexDirection: 'row' }}> <View style={{ borderWidth: 1, borderColor: 'white', justifyContent: 'space-between' }}> <View style={{ backgroundColor: 'red', height: 100, width: 100 }} /> <View style={{ backgroundColor: 'green', height: 100, width: 100 }} /> </View> <View style={{ borderWidth: 1, borderColor: 'white', justifyContent: 'space-between' }}> <View style={{ backgroundColor: 'blue', height: 150, width: 100 }} /> <View style={{ backgroundColor: 'yellow', height: 150, width: 100 }} /> </View> </View> ``` <img width="485" alt="Captura de Tela 2021-08-28 às 00 46 34" src="https://user-images.githubusercontent.com/10624503/131205265-604b712c-2d92-4cec-b198-58bf3a89feb7.png"> * With `flexWrap` (unexpected behavior) ``` <View style={{ backgroundColor: 'purple', flexDirection: 'row', flexWrap: 'wrap' }}> <View style={{ borderWidth: 1, borderColor: 'white', justifyContent: 'space-between' }}> <View style={{ backgroundColor: 'red', height: 100, width: 100 }} /> <View style={{ backgroundColor: 'green', height: 100, width: 100 }} /> </View> <View style={{ borderWidth: 1, borderColor: 'white', justifyContent: 'space-between' }}> <View style={{ backgroundColor: 'blue', height: 150, width: 100 }} /> <View style={{ backgroundColor: 'yellow', height: 150, width: 100 }} /> </View> </View> ``` <img width="476" alt="Captura de Tela 2021-08-28 às 00 46 00" src="https://user-images.githubusercontent.com/10624503/131205257-aef1adf6-b7d6-4966-b5f0-c03ce898c18a.png"> Is that expected? Looks like a bug too right?
nicoburns commented 2023-03-30 13:50:28 -07:00 (Migrated from github.com)
Copy Link

Gentest snippets for both of these:

<div id="yoga_issue_1067" style="flex: 1;justify-content: center;align-items: center">
  <div style="flex-direction: column;background-color: blue;height: 100px;width: 100px;opacity: 0.5;">
    <div style="flex-direction: row;align-items: center;flex-wrap: wrap;margin-left: -100px;margin-top: -100px;">
      <div style="flex-direction: column;margin-left: 100px;margin-top: 100px;height: 100px;width: 100px;background-color: red;opacity: 0.5;"
      />
    </div>
  </div>
</div>

and

<div id="yoga_issue_1067_2" style="background-color: purple; flex-direction: row; flex-wrap: wrap">
  <div style="border-width: 1; border-color: white; flex-direction: column; justify-content: space-between">
    <div style="background-color: red; height: 100px; width: 100px"></div>
    <div style="background-color: green; height: 100px; width: 100px"></div>
  </div>
  <div style="border-width: 1; border-color: white; flex-direction: column; justify-content: space-between">
    <div style="background-color: blue; height: 150px; width: 100px" /></div>
    <div style="background-color: yellow; height: 150px; width: 100px" /></div>
  </div>
</div>
Gentest snippets for both of these: ```html <div id="yoga_issue_1067" style="flex: 1;justify-content: center;align-items: center"> <div style="flex-direction: column;background-color: blue;height: 100px;width: 100px;opacity: 0.5;"> <div style="flex-direction: row;align-items: center;flex-wrap: wrap;margin-left: -100px;margin-top: -100px;"> <div style="flex-direction: column;margin-left: 100px;margin-top: 100px;height: 100px;width: 100px;background-color: red;opacity: 0.5;" /> </div> </div> </div> ``` and ```html <div id="yoga_issue_1067_2" style="background-color: purple; flex-direction: row; flex-wrap: wrap"> <div style="border-width: 1; border-color: white; flex-direction: column; justify-content: space-between"> <div style="background-color: red; height: 100px; width: 100px"></div> <div style="background-color: green; height: 100px; width: 100px"></div> </div> <div style="border-width: 1; border-color: white; flex-direction: column; justify-content: space-between"> <div style="background-color: blue; height: 150px; width: 100px" /></div> <div style="background-color: yellow; height: 150px; width: 100px" /></div> </div> </div> ```
NickGerleman commented 2023-12-09 07:12:43 -08:00 (Migrated from github.com)
Copy Link

Needs to be checked for repro. When I ran under the current iteration of Yoga playground, it looked like the expected output.

// https://github.com/facebook/yoga/issues/1067

<YogaRoot useWebDefaults={false}>
  <Node style={{ flexDirection: 'row', flexWrap: 'wrap' }}>
    <Node style={{ borderWidth: 1, justifyContent: 'space-between' }}>
      <Node style={{ height: 100, width: 100 }} />
      <Node style={{ height: 100, width: 100 }} />
    </Node>
    <Node style={{ borderWidth: 1, justifyContent: 'space-between' }}>
      <Node style={{ height: 150, width: 100 }} />
      <Node style={{ height: 150, width: 100 }} />
    </Node>
  </Node>
</YogaRoot>
Needs to be checked for repro. When I ran under the current iteration of Yoga playground, it looked like the expected output. ```jsx // https://github.com/facebook/yoga/issues/1067 <YogaRoot useWebDefaults={false}> <Node style={{ flexDirection: 'row', flexWrap: 'wrap' }}> <Node style={{ borderWidth: 1, justifyContent: 'space-between' }}> <Node style={{ height: 100, width: 100 }} /> <Node style={{ height: 100, width: 100 }} /> </Node> <Node style={{ borderWidth: 1, justifyContent: 'space-between' }}> <Node style={{ height: 150, width: 100 }} /> <Node style={{ height: 150, width: 100 }} /> </Node> </Node> </YogaRoot> ``` <img width="1464" alt="image" src="https://github.com/facebook/yoga/assets/835219/9f8e5477-900b-41fd-b1ed-e8f8057af85b">
👍 1
Titozzz commented 2025-04-15 06:22:03 -07:00 (Migrated from github.com)
Copy Link

Still reproduces on react native 0.79. (I've tried using experimental_LayoutConformance)

Still reproduces on react native 0.79. (I've tried using experimental_LayoutConformance)
